A wall-hung toilet is the one fixture that makes a bathroom look like it was designed rather than assembled. The bowl floats off the floor, the tank disappears into the wall, and there is nothing behind or under it to clean around. It is standard in European bathrooms and increasingly common in Canadian ensuites and condos. It is also more involved to install than a floor-mounted toilet, and the decision has to be made before the drywall goes up. This guide explains how the system works, what it costs here, what your wall needs to be, and the trade-offs, so you know whether it belongs in your renovation.
Key takeaways
- A wall-hung toilet is three parts: the in-wall carrier (steel frame plus concealed tank), the bowl that bolts to it, and the actuator plate (flush buttons) on the wall.
- The carrier needs a wall at least 2x6 (5.5" deep); some slim carriers fit 2x4 walls with a modest bump-out.
- Seat height is adjustable during installation, typically 15"–19", which is the easiest way to get a true comfort-height toilet.
- It frees about 10" (25 cm) of floor compared with a standard toilet and makes mopping under it trivial.
- Cost in Ontario: $600–$1,000 for a carrier, $230–$800 for a bowl, plus $800–$1,500 labour with the wall open. Budget $1,700–$3,500 installed.
- Everything serviceable (fill valve, flush valve, seals) is reached through the actuator plate opening. The wall does not need to be opened again.
How a wall-hung toilet works
The carrier
A powder-coated steel frame about 20"–24" wide and 40"–45" tall that bolts to the floor and the studs. It carries a plastic concealed tank (usually 1.6/0.8 gpf dual flush or 1.28/0.8 gpf), the fill valve, the flush valve, the outlet bend that connects to the drain, and two threaded rods that the bowl hangs on. Carriers are rated for 400–880 lb (180–400 kg); the weight goes into the frame and the floor, not the drywall.
The bowl
A rimless or standard elongated bowl with a flat back. It slides over the rods, seals to the outlet bend with a gasket, and is tightened from inside the bowl's mounting holes. The wall finish (tile, drywall) runs behind and under it.
The actuator plate
A plastic, glass or metal plate about 6" x 9" with two buttons (light and full flush) or a single button, mounted on the wall above the bowl. It covers a service opening in the front of the tank. Plates come in dozens of finishes and are chosen last.
Pros and cons
| Pros | Cons |
|---|---|
|
|
What the wall and the plumbing need
Wall depth
- 2x6 wall (5.5" cavity): the standard for full-size carriers. If you are building or reframing the wall, frame it 2x6 and the job is straightforward.
- 2x4 wall (3.5" cavity): slim carriers (about 3.5"–4" deep) exist and are designed for exactly this, though some project slightly and need a furred-out wall. Alternatively, build a 2x6 half-height "plumbing wall" in front of the existing wall, which also gives you a shelf on top.
- Concrete or block wall (condos): the carrier is anchored to the floor and a framed chase built in front of it. Condo boards often require an engineer's letter for drain changes; ask before you buy.
Drain
The carrier's outlet is a 3" or 4" horizontal elbow about 8"–10" above the floor. The existing floor drain has to be rerouted up into the wall, which means opening the floor around the old flange (wood-frame) or trenching (slab). This is the single biggest cost variable. If the bathroom is being gutted anyway, it is an hour or two for the plumber. If the floor is staying, expect a much bigger bill.
Water supply
A 1/2" supply brought into the carrier cavity with a shut-off valve inside the tank compartment, reachable through the actuator opening.
Load
The carrier's feet bolt to the subfloor and the frame to the studs. On wood-frame floors no special reinforcement is needed. The carriers are rated for far more than a person's weight; do not let anyone tell you the toilet "might fall off the wall."
Setting the height
This is the feature people love most. The carrier's mounting rods and outlet elbow adjust up and down during rough-in, so the rim of the bowl can land anywhere from about 15" (child height) to 19" (tall-adult height) off the finished floor. Decide before the drywall goes on: 16.5"–17.5" is the sweet spot for most adults and matches the "comfort height" of floor-mounted toilets. Add the seat thickness (about 1") when you measure. Our toilet height guide goes deeper.
Installation sequence
- Rough-in (walls open): the plumber sets the carrier plumb and level, bolts it to the floor and studs at the chosen bowl height, connects the drain to the outlet elbow, runs the supply into the tank compartment and pressure-tests everything. The tank's protective cover stays on. 3–5 hours.
- Drywall and tile: the wall is closed up around the carrier. The rods, outlet and the plate opening protrude through cut-outs. Tile the wall and floor completely, including under where the bowl will hang.
- Finish (after tile): the plumber trims the outlet and supply pipes flush, fits the bowl gasket and sound-insulation pad, hangs the bowl, tightens it, fits the seat, installs the fill valve and flush mechanism, connects the actuator plate and tests. 1–2 hours.
Cost in Ontario
| Item | Typical cost (CAD) |
|---|---|
| In-wall carrier with dual-flush tank (Geberit, Duravit DuraSystem, Grohe) | $600–$1,000 |
| Wall-hung bowl, rimless | $230–$800 |
| Seat (soft-close, often sold separately) | $80–$250 |
| Actuator plate | $60–$300 (white plastic to glass or brushed metal) |
| Complete set (carrier + bowl + seat + plate) | $1,000–$1,800 |
| Plumber, rough-in + finish (walls already open, wood floor) | $800–$1,500 |
| Drain relocation on a concrete slab | + $1,500–$3,000 |
| Framing a 2x6 chase or bump-out (carpenter) | $300–$800 |
| Typical installed total, wood-frame home, bathroom being renovated | $2,000–$3,500 |
Compare with $400–$900 installed for a quality floor-mounted one-piece toilet. The premium buys the look, the floor space and the cleaning, not a better flush.
Maintenance and repairs
- Everything is accessed through the actuator plate. Pop the plate off (it clips or unscrews), and the fill valve, flush valve seal and shut-off valve are right there. The wall is never opened again.
- Flush valve seal wears like a flapper: every 5–10 years, $20–$40, ten minutes.
- Fill valve: replaceable through the same opening, $40–$80.
- Bowl gasket leak: rare; the bowl is unbolted, the gasket replaced, and the bowl rehung. No tile is disturbed.
- Cleaning: wipe the bowl and the wall behind. The gap under the bowl is 6"–10", so a mop or robot vacuum passes.
- Noise: a Duravit noise-reduction gasket ($37) between the bowl and the wall stops the hum of the flush travelling through the tile.
Is it right for your bathroom?
| Good fit | Think twice |
|---|---|
|
|
Wall-hung toilets at MyBath

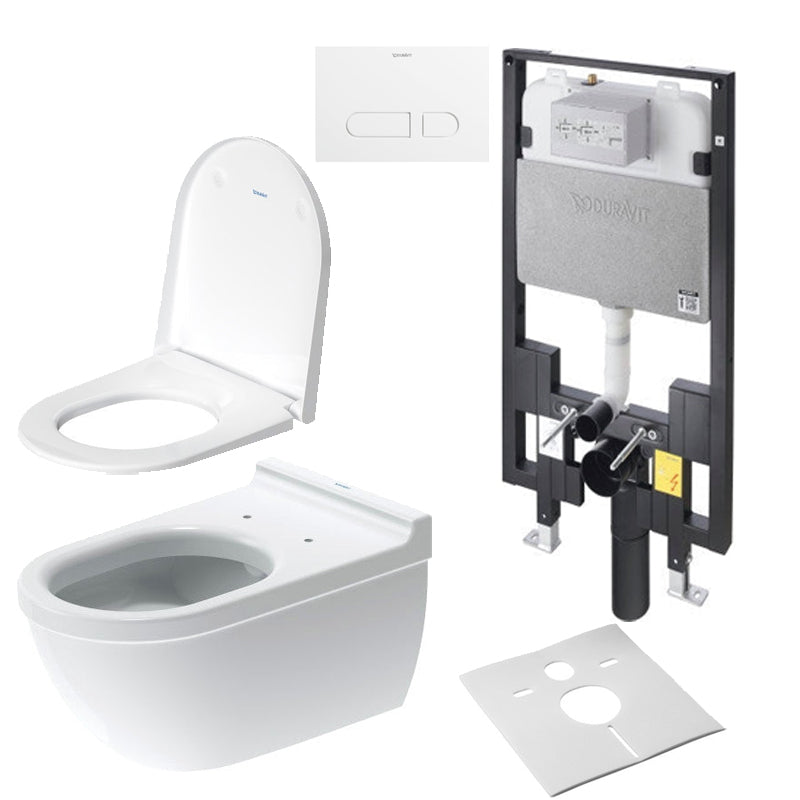

We stock Duravit wall-hung bowls, which fit Geberit, Duravit DuraSystem and other standard 180/230 mm carriers, plus a complete D-Neo set with the carrier included.
Shop wall-hung toilets at MyBath
Duravit rimless wall-mounted bowls and complete carrier sets, delivered across Ontario. Free delivery on orders over $600 within Ontario. Not sure which carrier fits? Send us the model and we will check.
Frequently asked questions
Can a wall-hung toilet fall off the wall?
No. The bowl hangs on a steel carrier bolted to the floor and the studs, rated for 400–880 lb. The drywall and tile carry no load at all.
Do you need a 2x6 wall for a wall-hung toilet?
Standard carriers need a 2x6 (5.5") wall. Slim carriers fit 2x4 walls, sometimes with a small furred-out section. A half-height plumbing wall built in front of the existing wall is the usual solution in a renovation.
How do you fix a wall-hung toilet if something breaks?
Through the actuator plate. Remove the plate and the fill valve, flush valve seal and shut-off valve are all accessible. The wall never needs to be opened.
How much does a wall-hung toilet cost installed in Ontario?
$2,000–$3,500 in a wood-frame home where the bathroom is already being renovated, covering carrier, bowl, seat, plate and plumbing labour. Slab floors and drain relocation add more.
Can I install a wall-hung toilet without renovating?
Realistically, no. The wall must be opened to set the carrier and the drain moved from the floor into the wall. It is a renovation item.
Are wall-hung toilets comfort height?
They can be any height you choose at rough-in, typically 15"–19" to the rim. Set it at 16.5"–17.5" for comfort height.
