Shower heights are set once, when the plumber roughs in the valve and the shower arm, and the tile locks them in for twenty years. There is no code in Canada that dictates most of them, so builders default to habits from 1970, when the average head was lower and rain heads did not exist. The result is the shower head that hits a tall person in the chest and the valve you have to reach through cold water to turn on. This guide gives the standard measurements, why each one is where it is, and how to adjust them for your household before the drywall goes up.
Standard heights at a glance (from the finished shower floor)
- Shower head (arm outlet): 80" (203 cm). Raise to 84"–86" for households over 6', or with a rain head.
- Valve / mixer: 38"–48"; 42"–45" is the comfortable middle. In a tub-shower, 28"–32".
- Hand shower slide bar: bottom at 40"–48", top at 72"–80".
- Tub spout: 4"–6" above the tub rim.
- Body jets: three rows at roughly 27", 42" and 57", or per the system's spec.
- Shower niche: bottom shelf at 48"–60"; a second, lower shelf at 24"–30" for a razor or kids.
- Bench: 17"–19" tall, 15"–18" deep.
- Grab bar: 33"–36".
Shower head height
Standard: 80" (203 cm) from the finished floor to the centre of the shower arm where it exits the wall. This puts a standard angled head about 6"–8" lower at the spray face, so the water lands on the head of someone up to about 6'2" without them ducking.
- Tall household (6'2"+): 84"–86". The head sits above the tallest user's head with a small margin. A shorter person can still stand in the spray; it simply falls from higher.
- Rain head on a wall arm: the head hangs down and out from the arm, so rough the arm at 84"–90" and use an extension arm that brings the head 10"–16" out from the wall. A 10"–12" rain head should sit at least 8"–12" above the tallest user's head, or it feels like standing under a bucket.
- Ceiling-mount rain head: the ceiling itself sets the height. In an 8' shower ceiling that is 96", which is ideal; drop it to 84"–88" with a pendant arm in higher ceilings.
- Short household or kids' bathroom: 76"–78", or better, a slide bar with a hand shower so height adjusts per user.
- Two heads (his-and-hers): set each to its user, typically 80" and 84"–86", and give each its own volume control.
Valve (mixer) height
Standard: 38"–48", and most plumbers set it at 42"–45" in a walk-in shower. The valve should be reachable from outside the spray, at about waist to elbow height for an adult standing in front of it, so you can turn the water on without getting wet.
- Tub-shower combo: 28"–32" above the tub floor (about 12"–16" above the rim), so it is reachable from a seated position in the tub and from outside.
- Thermostatic systems with separate volume controls: the temperature valve at 42"–48" and the volume/diverter controls beside it or just below, at 36"–42", in a neat row or column. Plan the layout on paper and match it to the tile joints.
- Accessible shower: 38"–42", reachable from a bench or wheelchair, on the wall opposite the seat or within 15" of it.
- Location on the wall: in a walk-in shower, put the valve near the entrance so it is reachable before you step in. It does not need to be under the shower head; the head can be on the opposite wall or the ceiling with the valve by the door.
For what is inside the wall, see our guide to pressure-balanced vs thermostatic valves.
Hand shower and slide bar
- Slide bar: 24"–36" long, with the top of the bar at 72"–80" and the bottom at 40"–48". This lets the hand shower serve as a fixed head for a tall adult at the top and reach a child, a dog or a seated bather at the bottom.
- Water outlet (elbow) for the hose: 24"–30" above the floor on a bar system, so the hose hangs in a loop without kinking. On systems where the hose connects at the valve trim, the trim height sets it.
- Fixed hand shower holder (no bar): 72"–76", or beside the bench at 40"–48".
- Cradle for a bench user: a second holder at 42"–48" beside the bench is one of the best accessibility upgrades for the cost.
Tub spout, diverter and overflow
- Tub spout: 4"–6" above the tub rim, centred on the drain end, and typically 6"–10" below the valve. Too low and it fouls the rim; too high and it splashes.
- Freestanding tub filler, wall-mount: the spout outlet 6"–10" above the tub rim, reaching at least 4" over the inside edge. Our bathtub faucet guide covers floor-mount fillers.
- Diverter (when separate from the valve): 36"–42" in a shower, or on the spout in a tub-shower.
Body jets
Body sprays are set to hit the torso, not the face. A common layout for a 3-jet column is 27", 42" and 57" from the floor (roughly thighs, hips and chest of an average adult). A 4- or 6-jet layout spaces them 12"–15" apart between about 24" and 60". Angle them slightly downward and put them on the wall opposite the entrance so they do not spray the door. Always follow the system's spec sheet; jet spacing is tied to the manifold, and the water supply has to be sized for it (see the valve guide linked above).
Shower niche height and size
| Niche | Bottom shelf height | Size | Notes |
|---|---|---|---|
| Main niche (shampoo, body wash) | 48"–60" | 12" wide x 24" tall (between studs) or 24"–36" wide with a header; 3.5" deep | Eye to chest height so bottles are visible and reachable without bending. Tall pump bottles need 12"+ of clear height per shelf. |
| Low niche (razor, kids, foot on the ledge) | 24"–30" | 12" x 12" | A foot rest for shaving legs; also reachable from a bench. |
| Full-height vertical niche | 30" | 12" wide x 40"–48" tall with 2–3 shelves | The modern look; one shelf at 48", one at 60". |
| Horizontal band niche | 48"–54" | Full wall width x 12" tall | Needs a header across every stud; a framing job, not a tile job. |
- Put the niche on a wall that is not the shower head wall and not an exterior wall. The side wall or the back wall, away from the direct spray, keeps bottles from being blasted.
- Align the niche edges with grout lines. Decide the tile layout first, then set the niche height to land on full tiles. A niche that starts mid-tile looks wrong forever.
- Slope the bottom shelf about 1/8" toward the shower so water drains out, and use a solid piece (stone or a single tile) for the shelf with no grout line to collect water.
- Waterproof it as part of the wall membrane; the niche is the most common leak point in a tiled shower.
Bench, grab bars and accessories
- Bench: 17"–19" high (chair height) and 15"–18" deep, sloped 1/8" toward the drain. Put the hand shower holder and the low niche within reach of it.
- Grab bar: 33"–36" to the centre, horizontal, screwed into 2x blocking added at rough-in. Add the blocking even if you do not install the bar yet; it costs nothing now and a wall opening later.
- Towel hook outside the shower: 66"–70". Towel bar: 48".
- Robe hook: 65"–70".
- Soap dish or corner shelf (surface-mounted): 48"–54".
- Shower door handle: 36"–42", matching the valve height looks intentional.
Planning worksheet for the plumber
Write these down and tape the sheet to the studs before rough-in. Measure everything from the finished floor, and tell the plumber the finished floor height (subfloor plus mortar bed plus tile is often 1.5"–2.5" above the subfloor they are standing on).
| Item | Standard | Your height |
|---|---|---|
| Finished floor above subfloor | 1.5"–2.5" | ____ |
| Shower arm outlet | 80" (84"–86" tall / rain) | ____ |
| Valve centre | 42"–45" (28"–32" tub) | ____ |
| Volume controls / diverter | 36"–42" | ____ |
| Hand shower outlet elbow | 24"–30" | ____ |
| Slide bar top / bottom | 72"–80" / 40"–48" | ____ |
| Body jets | 27" / 42" / 57" | ____ |
| Tub spout | 4"–6" above rim | ____ |
| Niche bottom shelf | 48"–60" (align to grout) | ____ |
| Bench | 17"–19" | ____ |
| Grab bar blocking | 33"–36" | ____ |
Fixing a shower head that is too low (without opening the wall)
- S-shaped or angled extension arm ($20–$50): screws onto the existing outlet and raises the head 6"–12" and brings it out from the wall. The fastest fix for a rain head on an old 72"–76" arm.
- Adjustable extension arm with a locking joint: raises and tilts.
- Slide bar with hand shower: mounts to the tile with two anchors and makes the height adjustable for everyone. See our shower head replacement guide.
- Ceiling arm from the existing outlet: some arms run up the wall and over, converting a wall outlet into an overhead rain position.

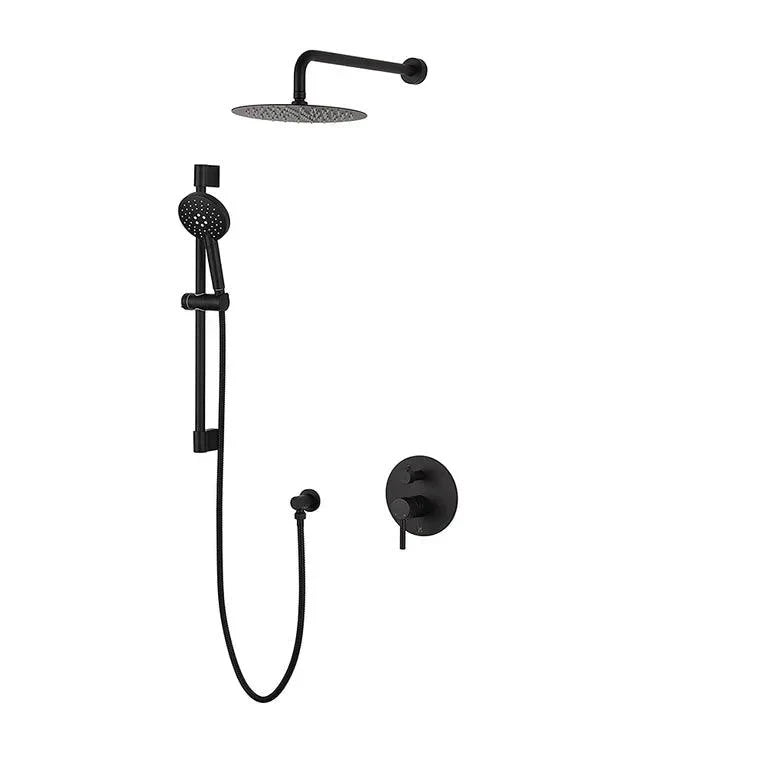

Shower systems with slide bars and rain heads
A sliding-bar system solves most height arguments: the rain head is fixed high, and the hand shower slides to any user. These include everything from the valve to the heads.
Planning a shower? Get the system before rough-in.
Your plumber needs the valve and trim on site to set heights and depths. Shower systems from Kodaen and Lauretta ship from Ontario, free on orders over $600.
Frequently asked questions
What is the standard shower head height?
80" (203 cm) from the finished floor to the shower arm outlet. Raise it to 84"–86" for tall users or a rain head on a wall arm.
How high should a shower valve be?
38"–48" in a walk-in shower, with 42"–45" the comfortable middle. In a tub-shower combo, 28"–32" above the tub floor so it is reachable from inside and outside the tub.
How high should a shower niche be?
Bottom shelf at 48"–60" for the main niche, aligned to a grout line, on a wall away from the direct spray. Add a low niche at 24"–30" for a razor or a foot rest.
How high should a rain shower head be?
At least 8"–12" above the tallest user's head: 84"–90" for a wall arm with an extension, or the ceiling height (typically 96") for a ceiling mount.
Is there a building code for shower head height in Canada?
No fixed height. Codes cover anti-scald valves, drainage and waterproofing, not head or valve height. Accessibility standards (CSA B651) give ranges for accessible showers; for a home, the heights here are convention, not law.
Can I raise my shower head without opening the wall?
Yes. An S-shaped or adjustable extension arm screws onto the existing outlet and raises the head 6"–12". A slide bar with a hand shower makes the height adjustable for every user.
