Every shower system, from a $130 basic set to a $780 rain-and-jets column, is built around one hidden part: the valve behind the wall. It decides whether the water stays at the temperature you set when someone flushes a toilet, how many outlets you can run at once and how much the whole install costs. This guide explains the two valve types sold in Canada, pressure-balanced and thermostatic, in plain language, so you can choose the right one before you buy a shower system.
Key takeaways
- Pressure-balanced valves keep the hot/cold ratio steady. One handle controls temperature and flow together. Best value for most family bathrooms.
- Thermostatic valves hold an exact temperature (for example 38 °C) and let you set flow separately. Best for rain heads, body jets and multi-outlet showers.
- Both types meet Canadian anti-scald code requirements (ASSE 1016 / CSA B125). The difference is precision and how many outlets they can feed.
- Expect to pay roughly $130–$500 for a pressure-balanced system and $500–$1,500+ for a thermostatic one, before installation.
- If you plan more than two outlets or a large rain head, go thermostatic with a 3/4" valve body.
Why the valve matters more than the shower head
Shower heads and hand showers are cosmetic. They can be swapped in ten minutes with a wrench. The valve is a different story: it is soldered or crimped into the supply lines, buried behind tile and expected to last 15–25 years. Changing it later means opening the wall. That is why the valve type should be the first decision in any shower project, not the last.
The valve does three jobs:
- Mixes hot and cold water to the temperature you want.
- Protects you from scalding when cold pressure drops (a toilet flush, a washing machine filling, a dishwasher starting).
- Routes water to the outlets: overhead rain head, hand shower, body jets or tub spout. This part is handled by a built-in or separate diverter.
Pressure-balanced valves: how they work
A pressure-balanced valve contains a small sliding piston or a spinning disc that sits between the hot and cold inlets. When the cold-side pressure suddenly drops, the piston moves and throttles the hot side by the same amount. The ratio of hot to cold stays the same, so the temperature at the shower head stays roughly the same, typically within ±2 to 3 °C.
You control it with a single lever or knob. Turning it further opens the valve and shifts the mix toward hot at the same time, so flow and temperature are tied together. Most pressure-balanced valves also have an adjustable rotational limit stop that caps how far the handle can turn toward hot. Your installer sets it so the maximum temperature is around 49 °C (120 °F), as required by code.
Pros
- Lowest cost. Complete systems with a rain head and hand shower start around $400; basic tub/shower sets around $130.
- Simple single-handle operation that children and guests understand instantly.
- Fewer parts, so cartridges are inexpensive and easy to replace.
- Works well with standard 1/2" supply lines found in most Canadian homes.
Cons
- You cannot reduce flow without also changing the temperature.
- Temperature drifts if incoming hot water temperature changes.
- Limited flow (typically 5–7 GPM at 45 psi), which struggles to feed a 12" rain head plus body jets at the same time.
- Every shower starts at the last position, but you still wait for it to warm and fine-tune each time.
Thermostatic valves: how they work
A thermostatic valve contains a wax or bimetal thermostatic element that expands and contracts with water temperature. It constantly adjusts the hot and cold inlets to hold the actual outlet temperature at the number you dialled in, usually within ±1 °C. If cold pressure drops, it compensates. If the water heater starts to cool, it also compensates by opening the hot side further, until the hot supply is fully exhausted.
Thermostatic showers have two controls: one handle sets temperature (often with a safety stop button at 38 °C), the other sets volume, or selects the outlet. On a three-way system you may see three handles: temperature, volume and a diverter that switches between rain head, hand shower and body jets.
Pros
- Precise, repeatable temperature. Set it once, and every shower starts exactly there.
- Independent flow control: you can turn the water down to rinse a razor without it going cold.
- Higher flow capacity, especially in 3/4" valve bodies (10–15+ GPM), so it can feed a rain head, hand shower and jets together.
- Best scald protection for children, seniors and anyone with reduced sensation.
- Feels premium. This is the valve used in hotel and spa showers.
Cons
- Higher price: valve-and-trim systems typically start around $500 and go well past $1,500.
- More components in the wall (separate volume controls and diverters), so rough-in takes longer and costs more in labour.
- Needs adequate water pressure and, for large systems, a 3/4" supply line and a water heater sized for the flow.
- Cartridges cost more to replace, and the thermostatic element can be affected by hard-water scale over time.
Side-by-side comparison
| Feature | Pressure-balanced | Thermostatic |
|---|---|---|
| What it controls | Hot/cold pressure ratio | Actual outlet temperature |
| Temperature accuracy | ±2–3 °C | ±1 °C |
| Handles | 1 (temperature + flow together) | 2–3 (temperature, volume, diverter) |
| Independent flow control | No | Yes |
| Compensates for cooling water heater | No | Yes (until hot water runs out) |
| Typical flow | 5–7 GPM | 7–15+ GPM (1/2" vs 3/4" body) |
| Outlets it can run at once | 1–2 | 2–4+ |
| Anti-scald standard | ASSE 1016 Type P | ASSE 1016 Type T |
| System price (CAD, before install) | $130–$500 | $500–$1,500+ |
| Best for | Family baths, tub/showers, rentals, budget renos | Master ensuites, rain heads, body jets, spa showers |
What Canadian plumbing code requires
Since the early 2000s, every new or replaced shower valve in Canada must be an automatic compensating valve that limits outlet temperature to 49 °C (120 °F). Both pressure-balanced (ASSE 1016 Type P) and thermostatic (Type T) valves satisfy this, and many modern valves are certified as Type P/T combination valves. The old two-handle hot/cold shower valves with no compensation are no longer permitted for new installations. If you are replacing a vintage two-handle shower, plan on opening the wall and installing a compensating valve; a licensed plumber will not sign off on anything less.
1/2" vs 3/4" valves: sizing for rain heads and jets
Valve size refers to the inlet and outlet port diameter. It sets the maximum flow the valve can pass, and that determines how many outlets you can run at the same time.
| Setup | Approx. flow needed | Valve recommendation |
|---|---|---|
| Single shower head (Canadian 1.8–2.0 GPM) | 2 GPM | 1/2" pressure-balanced |
| Shower head + hand shower (one at a time) | 2 GPM | 1/2" pressure-balanced with diverter |
| 10"–12" rain head + hand shower together | 4–5 GPM | 1/2" thermostatic, or 3/4" if pressure is low |
| Rain head + hand shower + 4–6 body jets | 8–12 GPM | 3/4" thermostatic with separate volume controls |
| Steam shower + rain + jets | 10–15 GPM | 3/4" thermostatic, 3/4" supply line, large water heater |
Remember that Canadian homes usually have 1/2" branch lines and 40–60 psi of pressure. A 3/4" valve on a 1/2" supply will not magically produce more water. If you want a true multi-outlet spa shower, the supply from the main and the water heater capacity need to match the plan. This is worth discussing with your plumber before you order fixtures.
Diverters: 1-way, 2-way and 3-way systems
The "2-way" or "3-way" label on a shower system tells you how many outlets the diverter can serve. The valve type (pressure-balanced or thermostatic) is separate from the diverter count, but the two are usually paired.
- 1-function: one outlet, usually a fixed shower head. Simplest and cheapest.
- 2-way: two outlets, for example shower head and hand shower. On most pressure-balanced systems you get one or the other; on thermostatic systems you can often run both.

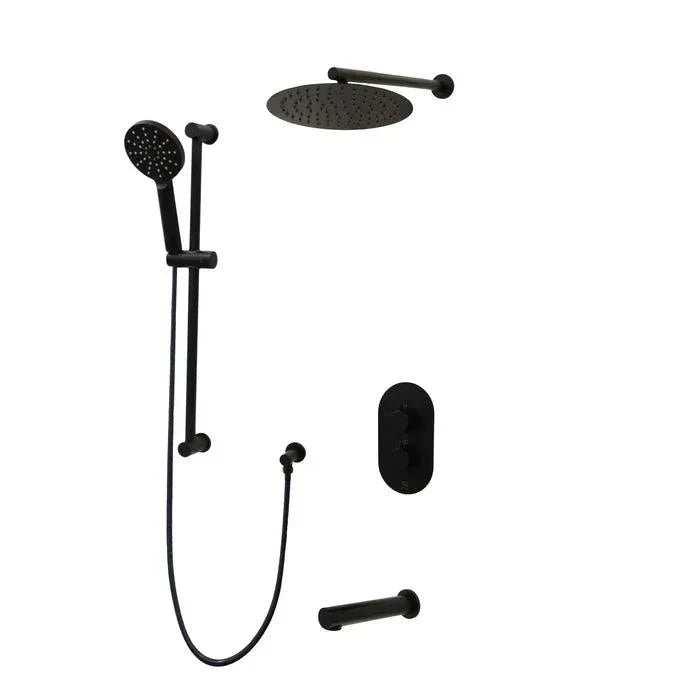

- 3-way: three outlets, typically rain head, hand shower and body jets (or tub spout). Almost always a thermostatic valve with a dedicated diverter handle.
Which one should you choose?
Choose pressure-balanced if…
- You are replacing a tub/shower combo or a basic single-head shower.
- The budget for the shower system is under $500.
- You want one handle that anyone can use.
- The bathroom is a secondary bath, rental or resale flip.
Choose thermostatic if…
- You want a rain head and hand shower running at the same time, or body jets.
- Several people with different temperature preferences share the shower.
- Young children or seniors use the bathroom and precise anti-scald matters.
- You are building a master ensuite or walk-in shower you plan to keep for 20 years.
Shower systems we recommend
All of these ship from our Ontario warehouse. Free delivery on orders over $600 within Ontario.
Installation and cost notes
- Rough-in labour in Ontario: roughly $300–$600 to replace a pressure-balanced valve in an open wall; $600–$1,500 for a thermostatic system with separate volume controls and body jets, because there is more piping and more holes in the tile.
- Buy the trim and valve together. Trim kits are matched to a specific valve body. Mixing brands usually does not work.
- Order before drywall. Your plumber needs the actual valve on site to set the depth for the finished wall.
- Hard water: if you are outside the GTA on well water, a whole-home softener will extend the life of any cartridge, thermostatic ones especially.
- Keep the cartridge model number. Write it on the inside of the vanity door. In ten years you will thank yourself.
Shop shower systems at MyBath
Pressure-balanced and thermostatic systems from Kodaen and Lauretta, in chrome, matte black and brushed gold. Delivered across Ontario from our Toronto-area warehouse, free on orders over $600.
Frequently asked questions
Is a thermostatic shower valve worth the extra money?
For a single-head shower, usually not. For a rain head with a hand shower, body jets or a shower shared by people who like different temperatures, yes. The precise, repeatable temperature and independent flow control are the features people notice every day.
Can I replace a pressure-balanced valve with a thermostatic one?
Yes, but it is a wall-open job. The valve bodies are different sizes, and most thermostatic systems add separate volume controls, so the tile will need to be cut. If the bathroom is being renovated anyway, it is the ideal time to switch.
Do pressure-balanced valves prevent scalding?
Yes. They are certified to ASSE 1016 and react within a fraction of a second to a drop in cold-water pressure, then are limited by the adjustable stop to a maximum of about 49 °C. They do not compensate for a cooling water heater, which a thermostatic valve does.
What does 2-way or 3-way mean on a shower system?
It is the number of outlets the diverter can send water to. A 2-way system typically has a shower head and hand shower; a 3-way adds body jets or a tub spout. It is not the same as the valve type.
Do I need a 3/4" valve?
Only if you plan to run several outlets at once (rain head plus jets, for example) and your home has the pressure and supply size to feed them. For one or two outlets a 1/2" valve is fine.
How long do shower valves last?
The brass valve body lasts decades. Cartridges typically need replacing every 8–15 years, sooner in hard-water areas. Replacing a cartridge does not require opening the wall.
