Shower dripping all night? Handle so stiff you need two hands? Water that will not get past lukewarm no matter how far you turn it? In a single-handle shower, all three symptoms point to the same part: the cartridge. The good news is that replacing it is a 30–60 minute job with basic tools, it costs $30–$120 for the part, and it does not require opening the wall. This guide covers how to identify your cartridge, remove it (even when it is stuck), install the new one and reset the anti-scald limit.
Key takeaways
- The cartridge is the replaceable core inside a single-handle shower valve. It controls mixing and flow. The brass valve body in the wall stays.
- Turn off the water first. Most showers have no local shut-off, so use the main house valve.
- Identify the cartridge by the brand and model of the valve, not the trim. Take a photo of the old cartridge before buying.
- A stuck cartridge comes out with a cartridge puller ($15–$40). Do not hammer or twist with pliers.
- Install the new cartridge in the same orientation ("H" up or the notch forward), or hot and cold will be reversed.
- Reset the rotational limit stop so the maximum temperature is about 49 °C.
Symptoms of a worn shower cartridge
| Symptom | Likely cause | Fix |
|---|---|---|
| Constant drip from the shower head or tub spout when off | Worn seals or scored cartridge body | Replace cartridge |
| Handle is stiff or grinds when turned | Mineral scale on the cartridge, dried lubricant | Clean and re-grease, or replace |
| Water will not get hot (or cold) | Stuck pressure-balancing spool, or limit stop set too low | Check limit stop first; then replace cartridge |
| Temperature swings wildly when a toilet flushes | Failed pressure-balancing piston | Replace cartridge |
| Low flow even with the handle fully open | Debris or scale blocking cartridge ports | Remove, flush the valve body, clean or replace |
| Water leaking behind the trim plate or into the wall | Cartridge O-rings, or a cracked valve body | Replace cartridge; if it persists, the valve body |
Step 1: Identify your cartridge
Cartridges are not universal. Each valve brand (and often each valve series within a brand) uses its own. The trim (the handle and plate you see) does not tell you the cartridge; the valve body behind it does.
- Look for a brand name on the trim plate or handle. Common in Canada: Moen, Delta, Kohler, American Standard, Pfister, Riobel, Kodaen, Grohe, Hansgrohe.
- Remove the handle and trim plate (see Step 3) and photograph the cartridge with a ruler beside it.
- Compare to the brand's parts diagram online, or bring the old cartridge to a plumbing supply counter. Big-box hardware stores stock the most common models.
- If the valve is a recent import system (many Kodaen, Lauretta and similar brands), contact the retailer you bought it from with the model number; cartridges are usually available as spare parts.
Step 2: Gather tools and shut off the water
Tools and supplies
- Replacement cartridge (correct model)
- Allen (hex) keys, usually 3/32" or 1/8" for the handle set screw
- Phillips and flat screwdrivers
- Adjustable wrench or slip-joint pliers
- Cartridge puller for your brand (strongly recommended for anything over 5 years old)
- Silicone plumber's grease (not petroleum jelly, which degrades rubber)
- White vinegar, an old toothbrush and a rag
- A towel to cover the drain so screws do not disappear
Shut off the water
Most showers have no dedicated stops, so close the main shut-off for the house (usually beside the water meter in the basement, or where the supply enters the home). Some newer valves have small integral stops behind the trim plate that can be closed with a flat screwdriver. Open the shower handle fully and let the pressure bleed off. Also open a tap on a lower floor to drain the lines.
Step 3: Remove the handle and trim
- Pry off the decorative cap on the handle (if any) with a fingernail or a plastic putty knife.
- Loosen the set screw with the Allen key or remove the Phillips screw. Pull the handle straight off. If it is seized, wiggle gently or use a handle puller.
- Remove the sleeve or adapter behind the handle, if present, then the trim plate (escutcheon). It is usually held by two screws; on some brands it is threaded and twists off.
- Note the rotational limit stop: a plastic ring with teeth or a small plastic tab. Take a photo of its position before you touch it.
- Clean the area with vinegar and a toothbrush so debris does not fall into the valve body.
Step 4: Remove the old cartridge
How the cartridge is held in depends on the brand:
- Retaining clip (Moen and many others): a U-shaped brass clip at the top of the cartridge. Pull it straight out with needle-nose pliers.
- Bonnet nut (Delta, Kohler, most thermostatic and imported valves): a large brass ring that unscrews counter-clockwise with a wrench or pliers.
- Retaining screws (some Kohler and Grohe): two or four screws around the flange.
With the retainer off, grip the cartridge stem with pliers and pull straight out while gently twisting. Note the orientation before it comes out: most cartridges have an "H" and "C", a flat side, or a notch that must face a particular way.
If the cartridge is stuck
Years of scale weld cartridges into the valve body. Do not hammer the stem or lever with a screwdriver: the brass valve body is soft and a cracked body means opening the wall.
- Buy or borrow the cartridge puller made for your brand. It threads onto the stem and uses a screw to press the cartridge out evenly.
- Spray penetrating oil around the cartridge and wait 15 minutes.
- Rock the stem side to side (not up and down) to break the scale bond, then pull.
- If the stem breaks off, a puller still works on most brands because it grips the cartridge body, not the stem.
Step 5: Clean the valve body and install the new cartridge
- Shine a flashlight into the valve body. Remove any rubber fragments or scale with a rag wrapped around a finger. Do not use anything metal.
- With a bucket held under the opening and the drain covered, briefly open the main water valve a quarter turn to flush debris out of the body, then close it again. Skip this if the valve has no stops and you cannot control the flow safely.
- Apply a thin film of silicone grease to the O-rings on the new cartridge.
- Line up the orientation marks and push the cartridge in until it seats fully. It should slide in with hand pressure; if it will not, check the alignment tabs.
- Reinstall the retaining clip, bonnet nut or screws. Tighten a bonnet nut snug, not gorilla tight.
Step 6: Set the anti-scald limit stop
The limit stop is what keeps children from being scalded. It is also the part that gets knocked out of position during a cartridge swap, which is why "the water is not as hot as before" is the most common complaint after this repair.
- Turn the water back on at the main. Check for leaks around the cartridge before reinstalling the trim.
- Temporarily push the handle onto the stem and run the shower on full hot for two minutes.
- Hold a thermometer in the stream. The target is 49 °C (120 °F) maximum. Many homes with children set it at 43–46 °C.
- Remove the handle and rotate the plastic limit-stop ring one tooth at a time (counter-clockwise for hotter on most brands, but check the photo you took) until the test reads correctly.
- Reinstall the trim plate, sleeve and handle, and tighten the set screw.
Cartridge cost and how long it takes
| Item | Typical cost (CAD) |
|---|---|
| Pressure-balance cartridge, common brands | $30–$80 |
| Thermostatic cartridge | $80–$200 |
| Cartridge puller | $15–$40 |
| Plumber, cartridge replacement (Ontario) | $150–$300 plus the part |
| Plumber, full valve replacement (wall open) | $400–$900 plus the valve and tile repair |
A first-time DIY replacement takes about an hour including the trip for parts. The second time you do it, 20 minutes.
When a new cartridge is not the answer
Sometimes it is smarter to replace the whole shower system rather than chase parts:
- No cartridge is available. Obscure or discontinued brands, or valves older than 25 years.
- The valve body is cracked or the stops are seized. Water leaking into the wall is the sign.
- It is an old two-handle valve without anti-scald protection. Code requires a compensating valve on replacement, and a modern single-handle or thermostatic system is far safer.
- You are re-tiling anyway. A new valve plus trim is the cheapest upgrade you can make while the wall is open.
- The trim finish is worn through and matching trim for the old valve is no longer sold.

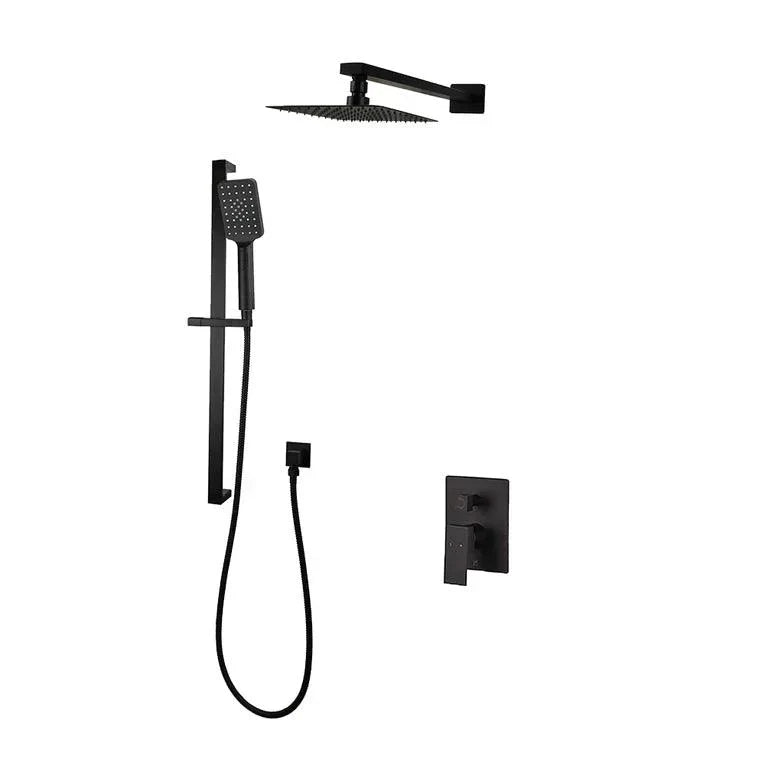

Complete shower systems with valve, trim, shower head and hand shower now start under $150, and a pressure-balanced system with a rain head and slide bar is around $400. Our guide to pressure-balanced vs thermostatic valves explains which type to pick.
Need a new shower system instead?
Complete pressure-balanced and thermostatic shower systems with anti-scald valves, delivered across Ontario. Free delivery on orders over $600 within Ontario.
Frequently asked questions
How do I know if my shower cartridge is bad?
The classic signs are a drip that will not stop when the handle is off, a stiff or grinding handle, water that will not get hot or cold, or big temperature swings when another fixture runs. If two or more of these are present, the cartridge is almost certainly worn.
Do I have to turn off the water to replace a shower cartridge?
Yes. Removing the cartridge opens both the hot and cold supplies. Close the main house valve, or the integral stops behind the trim if your valve has them, and bleed the pressure by opening the shower handle.
Are shower cartridges universal?
No. Each brand and often each valve series uses its own cartridge. Identify it by the valve brand and model, or take the old cartridge to a plumbing counter to match it.
Why is my shower not hot after replacing the cartridge?
Either the rotational limit stop was reinstalled in the wrong position, or the cartridge went in backwards. Remove the handle, rotate the limit stop toward hot one tooth at a time and test with a thermometer. If hot and cold are actually reversed, rotate the cartridge or stem 180°.
How long does a shower cartridge last?
Typically 8–15 years. Hard water shortens that considerably; softened water extends it. Lubricating the O-rings with silicone grease when the cartridge is installed helps too.
Can I clean and reuse the old cartridge?
Sometimes. Soaking it in white vinegar for a few hours removes scale, and fresh silicone grease can free a stiff handle. Worn rubber seals cannot be fixed, though, so if the problem is a drip, replace it.
